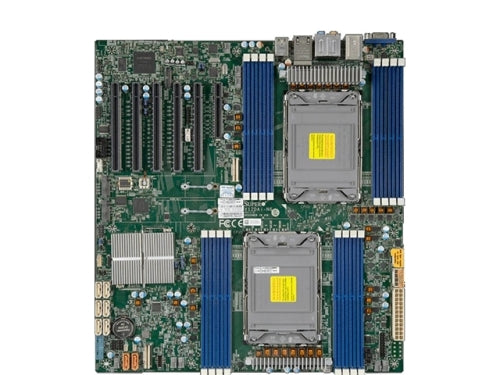

Supermicro Motherboard MBD-X12DAI-N6-B C621A LGA4189 Max4TB DDR4 PCI Express VGA/D-Sub E-ATX Bulk Box

MPN
MBD-X12DAI-N6-B
Form Factor
E-ATX
Processor
CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
System Memory
Memory Capacity
16 DIMM slots
Up to 6TB Intel Optane^TM Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
Up to 6TB Intel Optane^TM DC Persistent Memory in memory mode.
Memory Type
3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel C621A
SATA
Intel C621A controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Audio
7.1 HD Audio
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller
Input / Output
USB
6 USB 3.2 Gen1 port(s) (2 via header, 4 rear)
2 USB 3.2 Gen2 port(s) (1 rear type A, 1 type C)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
2 SuperDOM (Disk on Module) power connector
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 4.0 x8,
5 PCI-E 4.0 x16
M.2
M.2 Interface: 2 PCI-E 4.0 x4, RAID 0 and 1
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
Management
Software
SuperDoctor 5, SUM, SPM, Intel Node
Manager, SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
PC Health Monitoring
Voltage
VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, CPU, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, 8 -fan status
LED
Power LED
BMC/IPMI Heartbeat LED
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
FAN
8x 4-pin fan headers (up to 8 fans)
PWM fan speed control
Status monitoring for speed control
8x fans with tachometer monitoring
Other Features
WOL
UID
RoHS
Node Manager Support
CPU thermal trip support for processor protection
Chassis intrusion header
Chassis intrusion detection
ATX Power connector
ACPI power management
RoT
NCSI header
Operating Environment
Operating Temperature Range
10^oC - 35^oC (50^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
