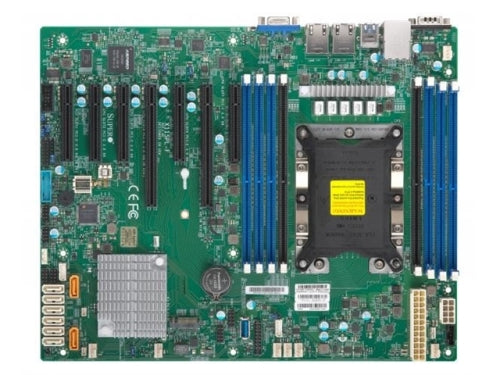

Supermicro Motherboard MBD-X11SPL-F-O Xeon Single Socket S3647 C621 Max.1TB PCI Express ATX Retail
New
Supermicro Motherboard MBD-X11SPL-F-O Xeon Single Socket S3647 C621 Max.1TB PCI Express ATX Retail

Supermicro Motherboard MBD-X11SPL-F-O Xeon Single Socket S3647 C621 Max.1TB PCI Express ATX Retail

$446.49
SHARE
Form Factor
ATX
CPU
Intel Xeon Processor Scalable Family.
Single Socket P (LGA 3647) supported, CPU TDP support 165W
Cores / Cache
Up to 28 cores
Memory Capacity
8x 288-pin DDR4 DIMM slots
Up to 1TB ECC 3DS LRDIMM
Up to 512GB ECC LRDIMM
Up to 256GB ECC RDIMM
Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Chipset
Intel C621
SATA
Intel C621 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 1GbE with Intel I210
Graphics
Aspeed AST2500 BMC
USB
8 USB 2.0 ports (2 rear + 6 via header(s)),
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output
1 VGA port(s)
Serial Port / Header
2 COM Ports (1 rear, 1 header(s))
TPM
TPM Header
PCI-E
2 PCI-E 3.0 x8 (in x16 slot),
4 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot)
M.2
Interface: PCIe 3.0 x4 and SATA
Form Factor: 2280, 22110
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or late
Software
Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watchdog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
FAN
7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature
CPU thermal trip support
PECI
LED
CPU / System Overheat LED
UID/Remote UID
Suspend static indicator LED
Other Features
ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL
Item Dimension (L inchxW inchxH inch)
14 x 11 x 3
Weight
3.00lb
