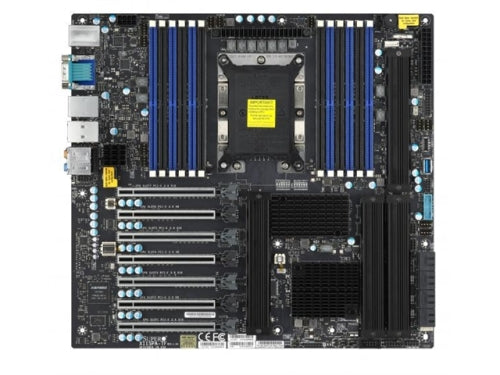

Supermicro Motherboard MBD-X11SPA-T-O Xeon SocketP LGA3647 C621 3TB DDR4 PCI Express SATA3 E-ATX Retail Box
Supermicro Motherboard MBD-X11SPA-T-O Xeon SocketP LGA3647 C621 3TB DDR4 PCI Express SATA3 E-ATX Retail Box

Supermicro Motherboard MBD-X11SPA-T-O Xeon SocketP LGA3647 C621 3TB DDR4 PCI Express SATA3 E-ATX Retail Box

$711.49
SHARE
MPN
MBD-X11SPA-T-O
Product SKUs
MBD-X11SPA-T
X11SPA-T

Physical Stats
Form Factor
E-ATX
Dimensions
12" x 13" (30.48cm x 33.02cm)

Processor/Cache
CPU
Intel Xeon Scalable Processors, Intel Xeon W-32xx Processor.
Single Socket LGA-3647 (Socket P) supported, CPU TDP support 205W TDP
Cores / Cache
Up to 28 cores

System Memory
Memory Capacity
Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots
Xeon-W 32xx supports up to 2TB 3DS ECC RDIMM/LRDIMM, Xeon-W 32xx supports up to 1TB 3DS RDIMM/LRDIMM.
Xeon-W32xx series processors dont support DCPMM.
Memory Type
N/A
DIMM Sizes
1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V

On-Board Devices
Chipset
Intel C621
SATA
Intel C621 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Single LAN with Intel Ethernet Controller I210-AT Single LAN with Aquantia AQC107 10G Ethernet Controller Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Graphics
Aspeed AST2500 BMC
VGA connector is dedicated for IPMI.

Input / Output
LAN
1 1GbE LAN ports
1 RJ45 10GBase-T ports
USB
2 USB 2.0 ports (2 via headers, Type A))
6 USB 3.1 Gen1 ports (4 Rears Type A, 2 via headers)
4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C)
Video Output
1 VGA port,
VGA connector is dedicated for IPMI.
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
1 TPM Header

Expansion Slots
PCI-E
4 PCI-E 3.0 x16,
3 PCI-E 3.0 x8 (in x16 slot),
PCI-Ex16 Slot1 shares with M.2, Slot2 shares with Slot3(NA/16,8/8), Slot4 shares with Slot5(NA/16,8/8), Slot6 shares with Slot7(NA/16,8/8)
(16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8)
(16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8)
M.2
M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 and 1
Form Factor: 2242/2260/2280/22110
Key: M-Key
VROC key is required for Raid.

System BIOS
BIOS Type
256Mb SPI Flash with AMI BIOS
BIOS Features
ACPI 3.0 / 4.0
SMBIOS 2.7
PCI FW 3.0
RTC (Real Time Clock) Wakeup

Management
Software
IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor 5, Watchdog
System Mangement Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
SUM OOB Bios refresh is not supported
SuperDoctor 5
Power Configurations
ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
CPU thermal trip support for processor protection

PC Health Monitoring
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
FAN
10x 4-pin fan headers (up to 10 fans), Dual Cooling Zone, Fan speed control, Overheat LED indication
2 CPU Fan + 1 Water Cooler Radiator power connector + 8 System Fans.
Temperature
CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED
CPU / System Overheat LED, Suspend static indicator LED
Other Features
Chassis intrusion header, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel Smart Response Technology, RoHS, UID, WOL

Operating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
10% - 95% (non-condensing)
