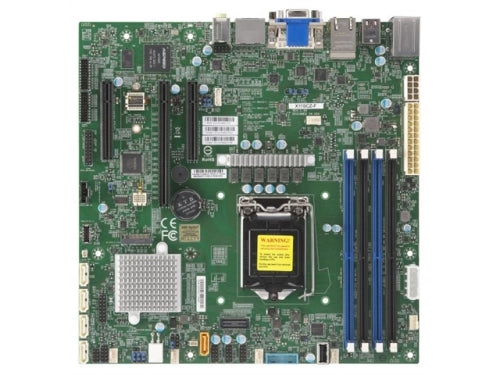

Supermicro Motherboard MBD-X11SCZ-F-B S1151 C246 PCIE SATA uATX Bulk Pack
New
Supermicro Motherboard MBD-X11SCZ-F-B S1151 C246 PCIE SATA uATX Bulk Pack

Supermicro Motherboard MBD-X11SCZ-F-B S1151 C246 PCIE SATA uATX Bulk Pack

$410.99
SHARE
MPN
MBD-X11SCZ-F-B
Physical Stats
Form Factor
uATX
Processor/Cache
CPU
8th Generation Intel Core i3 Processors, Intel Celeron, Intel Pentium, Intel Xeon E processor (Coffee Lake-S) Workstation.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports
System Memory
Memory Capacity
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes
4GB, 8GB, 16GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
Intel C246
SATA
Intel C246 controller for 5 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Single LAN with Intel Ethernet Controller I210-AT
Single LAN with Intel PHY I219LM LAN controller
Audio
ALC 888S HD Audio
Graphics
Aspeed AST2500 BMC, Intel HD Graphics
3 Independent Displays

Input / Output
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
7 USB 2.0 ports (6 headers + 1 Type A),
2 USB 3.0 ports (2 headers),
6 USB 3.1 ports (4 rears (3 Type A + 1 Type C) + 2 headers)
Video Output
1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays
Serial Port / Header
4 COM Ports (4 headers)
TPM
TPM Header Chip both

Expansion Slots
PCI-E
1 PCI-E 3.0 x16,
2 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key

System BIOS
BIOS Type
AMI UEFI
Management
Software
IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor 5, Watchdog
System Mangement Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
+12V DC Power Input
ATX Power connector
ACPI Power Management

PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 6 -fan status, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control
Temperature
Thermal Control for 6 Fan Connectors
LED
UID/Remote UID
Other Features
12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID
Operating Environment
Operating Temperature Range
0oC - 60oC (32oF - 140oF)
Non-Operating Temperature Range
-40oC - 85oC (-40oF - 185oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Item Dimension ( L inchxW inchxH inch)
NA
Weight
3 lb
