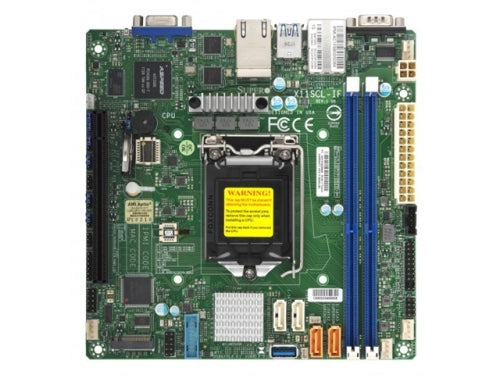

Supermicro Motherboard MBD-X11SCL-IF-B E-2100 LGA1151 C242 64GB DDR4 PCI Express Mini-ITX Bulk Box
New
Supermicro Motherboard MBD-X11SCL-IF-B E-2100 LGA1151 C242 64GB DDR4 PCI Express Mini-ITX Bulk Box

Supermicro Motherboard MBD-X11SCL-IF-B E-2100 LGA1151 C242 64GB DDR4 PCI Express Mini-ITX Bulk Box

$258.99
SHARE
Physical Stats
Form Factor
Mini-ITX

Processor/Cache
CPU
8th Generation Intel CoreTM i3/Pentium/Celeron Processor, Intel Xeon Processor E-2100 series.
Single Socket LGA 1151 supported, CPU TDP support Up to 95W TDP
Cores / Cache
6 cores, 12 threads

System Memory
Memory Capacity
Up to 64GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
Memory Type
2667/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
(Future support for 64GB via a BIOS update)

On-Board Devices
Chipset
Intel C242
SATA
Intel C242 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 1GbE with Intel I210
Graphics
Aspeed AST2500 BMC

Input / Output
USB
4 USB 2.0 ports (2 rear + 2 headers)
5 USB 3.1 ports (2 rears (2 Type A + 2 headers(1 Type A)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 rear)
TPM
1 TPM Header

Expansion Slots
PCI-E
1 PCI-E 3.0 x16 (in x16 slot)
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key
Double Height Connector

System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0

Management
Software
IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor 5, Watchdog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery

PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 4 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature
Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment
LED
CPU / System Overheat LED, UID/Remote UID
Other Features
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL

Operating Environment
Operating Temperature Range
0oC to 50oC (32oF to 122oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
