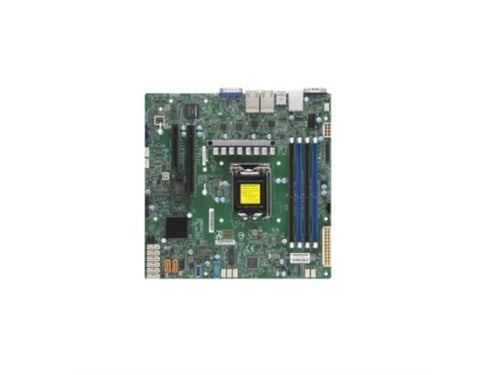

Supermicro Motherboard MBD-X11SCH-LN4F-B Core i3 LGA1151 C246 PCI Express SATA Micro-ATX 128GB DDR4 Bulk Pack
New
Supermicro Motherboard MBD-X11SCH-LN4F-B Core i3 LGA1151 C246 PCI Express SATA Micro-ATX 128GB DDR4 Bulk Pack

Supermicro Motherboard MBD-X11SCH-LN4F-B Core i3 LGA1151 C246 PCI Express SATA Micro-ATX 128GB DDR4 Bulk Pack

$372.99
SHARE
MPN
MBD-X11SCH-LN4F-B
Product SKUs
MBD-X11SCH-LN4F
X11SCH-LN4F

Physical Stats
Form Factor
Micro-ATX

Processor/Cache
CPU
8th Generation Intel CoreTM i3/Pentium/Celeron Processor, Intel Xeon Processor E-2100 series. Socket LGA 1151 supported, CPU TDP support Up to 95W TDP
Cores / Cache
6 cores, 12 threads

System Memory
Memory Capacity
Up to 128GB DDR4 ECC UDIMM, in 4 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
(Future support for 128GB via a BIOS update expected in early 2019)

On-Board Devices
Chipset
Intel C246
SATA
Intel C246 controller for 8 SATA3 (6 Gbps) ports
RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Quad LAN with Intel Ethernet Controller I210
Graphics
Aspeed AST2500 BMC

Input / Output
USB
6x USB 2.0 ports (2 rear, 4 via headers)
2x USB 3.1 Gen2 ports (rear)
3x USB 3.1 Gen1 ports (1 Type-A, 2 via header)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
1 TPM Header

Expansion Slots
PCI-E
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x8
M.2
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector

System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0

Management
Software
Intel Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery

PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
N/A
LED
CPU / System Overheat LED, UID/Remote UID
Other Features
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL

Operating Environment
Operating Temperature Range
0oC to 50oC (32oF to 122oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Weight
3.00 LB
