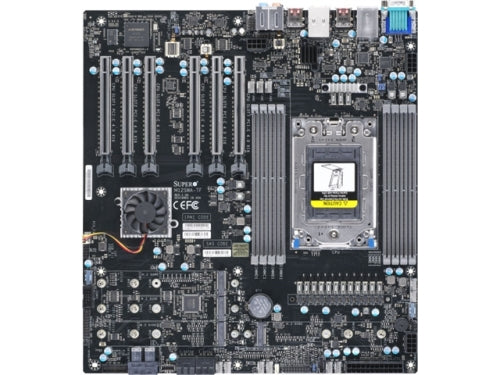

Supermicro Motherboard MBD-M12SWA-TF-O AMD WRX80 sWRX8/SP3 256GB DDR4 PCI Express E-ATX Retail
New
Supermicro Motherboard MBD-M12SWA-TF-O AMD WRX80 sWRX8/SP3 256GB DDR4 PCI Express E-ATX Retail

Supermicro Motherboard MBD-M12SWA-TF-O AMD WRX80 sWRX8/SP3 256GB DDR4 PCI Express E-ATX Retail

$772.99
SHARE
MPN
MBD-M12SWA-TF-O
Form Factor
E-ATX
Processor/Cache
CPU
Single AMD RyzenTM ThreadripperTM PRO 3000WX Series Processor
Socket sWRX8/SP3
Supports CPU TDP up to 280W
Cores
Up to 64 Cores
System Memory
Memory Capacity
8 DIMM slots
Supports up to 256GB Unbuffered non-ECC UDIMM or 2TB Registered ECC DDR 3200MHz SDRAM
8-channel memory bus
Memory Type
DDR4 3200 MHz Unbuffered non-ECC UDIMM/Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
AMD WRX80
SATA
AMD WRX80 controller for 4 SATA3 (6 Gbps)ports, Software RAID 0,1,5,10
Network Controllers
10G LAN: Single LAN via Marvell AQC113C 10Gb controller
1GbE LAN: Single LAN via via Intel i210AT controller (shared with IPMI)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2600 BMC
Audio
ALC4050H + ALC1220 7.1 Channel HD Audio
Graphics
ASPEED AST2600 BMC
VGA connector is dedicated for IPMI
Input / Output
SATA
4 SATA3 (6 Gbps) ports
LAN
1 RJ45 10GBase-T LAN port
1 RJ45 GbE LAN port (shared with IPMI)
USB
1 USB 3.2 Gen2x2 port (Type C, 20Gbps)
5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps)
5 USB 3.2 Gen1 ports (3 Type A, 1 via header)
2 USB 2.0 via header
VGA
1 VGA port (dedicated for IPMI)
Others
1 COM port (rear)
1 TPM 2.0 header
Expansion Slots
PCI-Express
6 PCI-E 4.0 x16 slots
M.2
Interface: 4 PCI-E 4.0 x4
Form factor: 2280, 22110
Key: M-key
Software RAID 0,1,5,10 support
U.2
Interface: 2 U.2 Sockets
Software RAID 0,1 support
Chassis ( Optimized for M12SWA-TF )
Tower/5U Rackmountable
SCGS7A-2000B
Server(s) (with M12SWA-TF)
Model(s)
AS -5014A-TT
System BIOS
BIOS Type
AMI 256Mb Flash EEPROM
Management
Software
Super Doctor 5
Watch Dog
SUM
IPMI, KVM with shared LAN
Power Configurations
ACPI Power Management
Power button override mechanism
Keyboard wakeup from S5
S3/S4
PC Health Monitoring
CPU
Monitors CPU Core Voltages, +3.3V, +12V, +3.3Vstb, +5Vstb, Vcore, Vmem
Supports system management utility
FAN
Up to 10 4-pin fan headers
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
I2C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
Operating Environment / Compliance
Environmental Specifications
Operating Temperature:
0oC to 50oC (32oF to 122oF)
Non-operating Temperature:
-5oC to 55oC (23oF to 131oF)
FCC class B
