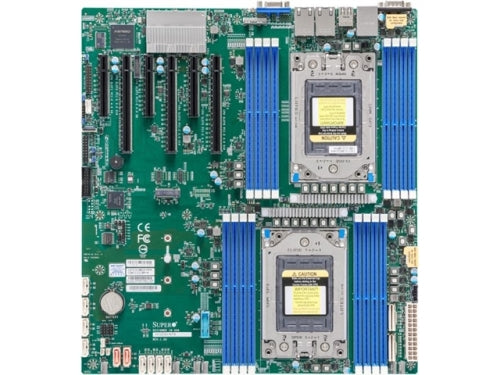

Supermicro Motherboard MBD-H12DSI-NT6-O SoC SocketSP3 EPYC7003/7002 Max4TB DDR4 EATX  Retail
New
Supermicro Motherboard MBD-H12DSI-NT6-O SoC SocketSP3 EPYC7003/7002 Max4TB DDR4 EATX  Retail

Supermicro Motherboard MBD-H12DSI-NT6-O SoC SocketSP3 EPYC7003/7002 Max4TB DDR4 EATX Retail

$877.49
SHARE
MPN
MBD-H12DSI-NT6-O
Physical Stats
Form Factor
EATX
Processor/Chipset
CPU
Dual AMD EPYC 7003/7002 Series Processors
Socket SP3
Cores
Up to 64 Cores
Chipset
System on Chip
System Memory
Memory Capacity
16 DIMM slots
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v. 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2600 BMC
Network Controllers
Dual LAN via Broadcom BCM57416 10GBase-T Ethernet Controller
VGA
ASPEED AST2600 BMC
Input / Output
SATA
10 SATA3 (6 Gbps) ports
LAN
2x 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 ports (rear)
4 USB 3.0 ports (2 rear, 2 headers)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connectors
4 PCI-E 4.0 NVMe x4 internal ports
TPM 2.0 header
Expansion Slots
PCI-Express
3 PCI-E 4.0 x16 slots
3 PCI-E 4.0 x8 slots
M.2
Interface: 1 PCI-E 4.0 x4
Form Factor: 2280, 22110
Key: M-key
Chassis ( Optimized for H12DSi-NT6)
2U
SCLA25TQC-R609LP
SCLA26AC12-R920LP1
3U
SC835TQC-R1K03B
System BIOS
BIOS Type
AMI 256Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 6.2
USB Keyboard Support
SMBIOS 3.1.1
Management
Software
Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
CPU switching voltage regulator
VBAT
FAN
Up to 8 fan status tachometer monitoring
Up to 8x 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
Operating Environment / Compliance
Environmental Specifications
Operating Temperature:
10oC to 35oC (50oF to 95oF)
Non-operating Temperature:
-40oC to 70oC (-40oF to 158oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
