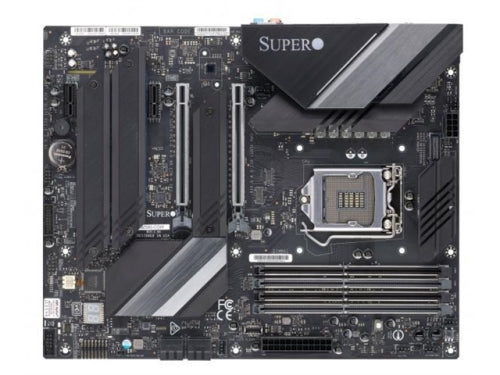

Supermicro Motherboard MBD-C9Z590-CG-O Z590 LGA1200 H5 i9/i7/i5 PCI Express ATX Retail
New
Supermicro Motherboard MBD-C9Z590-CG-O Z590 LGA1200 H5 i9/i7/i5 PCI Express ATX Retail

Supermicro Motherboard MBD-C9Z590-CG-O Z590 LGA1200 H5 i9/i7/i5 PCI Express ATX Retail

$424.99
SHARE
MPN
MBD-C9Z590-CG-O
Form Factor
ATX
Processor/Cache
CPU
11th Generation Intel CoreTM i5/i7/i9 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Cores / Cache
Up to 8 cores
System Memory
Memory Capacity
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
Memory Type
128GB DDR4 Unbufferred Non ECC UDIMM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel Z590
Network Controllers
Single LAN with Intel single Ethernet PHY i219V 1Gb
Single LAN with Marvell AQC113C 10Gb
Audio
ALC 1220 7.1 HD Audio
Graphics
DP version 1.4, HDMI version 2.0b
Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10 Gigabit Ethernet LAN ports
USB
6 USB 2.0 ports (4 rear + 2 via headers)
2 USB 3.2 Gen1 ports (2 via headers)
2 USB 3.2 Gen2 ports (2 Rear Type A
3 USB 3.2 Gen2x2 ports (2 Type C)
Video Output
1 HDMI port, 1 DP (DisplayPort) port, DP version 1.4, HDMI version 2.0b
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
(Slot4 and Slot6 can be configured as 16/NA, 8/8)
M.2
M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4
Form Factor: 2260/2280/22110
Key: M-Key
The CPU-attached M.2 slot is support with the Intel NVMe drives only (support RAID 0,1). PCH-attached M.2 slots can support either Intel optane memory with solid state or 3rd party NVMe SSD (support RAID 0,1)
System BIOS
BIOS Type
256Mb SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
SMBIOS 3.0 or later
Riser card auto-detection support
Management
Software
SuperDoctor 5
System Management Software
SuperDoctor 5
Power Configurations
ACPI Power Management
PC Health Monitoring
Voltage
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Temperature
N/A
LED
N/A
Other Features
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Operating Environment
Operating Temperature Range
0oC to 50oC (32oF to 122oF)
