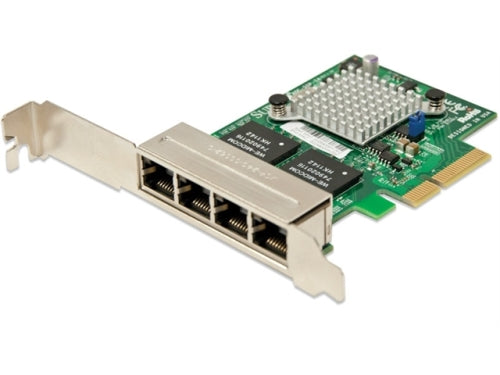

Supermicro I/O Cards AOC-SGP-I4 4Port Gigabit Ethernet i350 PCI Express 2.1 RJ45 Retail
NewOut Of Stock
Supermicro I/O Cards AOC-SGP-I4 4Port Gigabit Ethernet i350 PCI Express 2.1 RJ45 Retail

Supermicro I/O Cards AOC-SGP-I4 4Port Gigabit Ethernet i350 PCI Express 2.1 RJ45 Retail

$182.49
SHARE
MPN
AOC-SGP-I4
General:
- Intel i350 GbE controller
- Compact size low-profile standard form factor
- PCI-Express 2.1 x4 (2.5GT/s or 5GT/s) interface
- Four RJ-45 connectors
-Intel PROSet Utility for Windows Device Manager
- Intel I/O Acceleration Technology (I/O AT)
- Power consumption - about 5W
Ethernet Features:
- IEEE 802.3 auto-negotiation for speed, duplex, and flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection function (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
- IEEE 1588 protocol and 802.1AS implementation
Power Management and Efficiency:
- IEEE 802.3az - Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable function
- MAC Power Management controls
- Low Power Link Up Link Speed Control
Virtualization Features:
- VM to VM Packet forwarding (Packet Loopback)
- Eight TX and RX queue pairs per port to support VMWare NetQueue and Microsoft VMQ
- Flexible Port Partitioning: 32 Virtual Functions
- PC-SIG SR-IOV implementation
- IEEE 802.1q VLAN support
- IEEE 802.1q advanced packet filtering
Performance Features:
- TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
- Jumbo Frames support up to 9.5K Bytes
- Intelligent interrupt generation
Remote Boot Options:
- Preboot eXecution Environment (PXE) support
- iSCSI remote boot for Windows, Linux, and Vmware
OS Support:
- Windows XP SP3, Vista SP2, 7 SP1 2003 SP2, 2008 SP2, 2008 R2S
- RedHat EL 5.5, 6.0 SuSe SLES 10 SP3, 11 SP1
- FreeBSD 8.0
- VMware ESX 4.0, 4.1, 5.0
- Xen
Cables Support:
- RJ-45 Category 5/5e Up to 100m
Supported Platforms:
- Motherboards with minimum PCI-E x4 slot
- Server Systems with low-profile or full-height PCI-E x4 expansion slot
Compliance:
- RoHS
