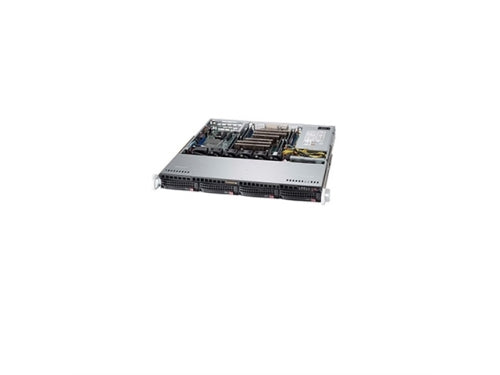

Supermicro Case CSE-813MFTQC-350CB2 1U 4x3.5 inch HotSwap SAS/SATA 350 Watts Brown Box
New
Supermicro Case CSE-813MFTQC-350CB2 1U 4x3.5 inch HotSwap SAS/SATA 350 Watts Brown Box

Supermicro Case CSE-813MFTQC-350CB2 1U 4x3.5 inch HotSwap SAS/SATA 350 Watts Brown Box

$453.99
SHARE
MPN
CSE-813MFTQC-350CB2
Form Factor
1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6")
Processor Support
Dual, single Intel / AMD processors
Available Color
Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA
Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 1 x Slim DVD-ROM Drive
Front Panel
Buttons:
Power On/Off button
System Reset Button
LEDs:
2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED
Motherboard (for CSE- 813MFTQC-350CB2)
X11SPi-TF
X11SPL-F
X11SPM-TF
X11SPM-TPF
X11SPM-F
H11SSL-NC
H11SSL-C
H11SSL-i
Systems Cooling
Fans:
4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range: 5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range: -40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency: 93%
Total Output Power and Input:
350W with Input 100 - 240Vac
AC Input Frequency: 50-60Hz
Dimensions (L x W x H): 180 x 100 x 40 mm
Output Type: 24pin ATX
-12V: Max: .2A / Min: 0A
+12V: Max: 29A / Min: .5A (100Vac - 240Vac)
+5V: Max: 15A / Min: .2A
+3.3V: Max: 12A / Min: .2A
+5Vsb Max: 3A / Min: 0A
Certification: Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
