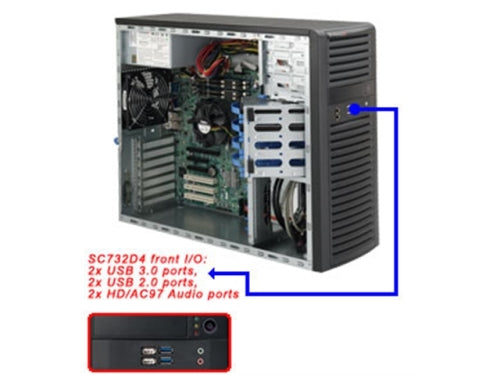

Supermicro Case CSE-732D4-903B Mid-tower 900W 80PLUS 4x3.5inch SAS/SATA Black Retail
New
Supermicro Case CSE-732D4-903B Mid-tower 900W 80PLUS 4x3.5inch SAS/SATA Black Retail

Supermicro Case CSE-732D4-903B Mid-tower 900W 80PLUS 4x3.5inch SAS/SATA Black Retail

$439.49
SHARE
MPN
CSE-732D4-903B
Form Factor
Mid-Tower chassis support for motherboard sizes -
12" x 13" E-ATX, 12" x 10" ATX, and 9.6" x 9.6" Micro-ATX

Processor Support
Supports dual, single Intel / AMD processors

Available Colors
Black
Expansion Slots
7x Full-height, Full-length I/O expansion slots

Drive Bays
Internal
4x 3.5" SAS/SATA HDD Bays
(90 rotatable drive cage)
SAS or enterprise SATA HDD only recommended
Peripheral Bay
2x 5.25" peripheral drive bays
1x 3.5" peripheral drive bay
Front Panel
Buttons
Power On/Off button
LEDs
Power status LED
Hard drive activity LED
Network activity LED
System Overheat LED
Ports
2x Front USB 3.0 ports
2x Front USB 2.0 ports
2x Front HD/AC97 Audio ports
System Cooling
Fans
1x 12cm (1850rpm) rear exhaust fan
1x 12cm (1850rpm) front cooling fan (opt.)
Optimized Cooling Technology at 21dB Whisper-Quiet Operation
Power Supply
900W AC multi output power supply w/ PMBus
AC Voltage
100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby
3 Amp
+12V1
25 Amp
+12V2
25 Amp
+12V3
25 Amp
+12V4
25 Amp
+5V
25 Amp
+3.3V
25 Amp
-12V
0.5 Amp
Certification
80PLUS Gold
Note:
Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.
Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
CCC Certified
