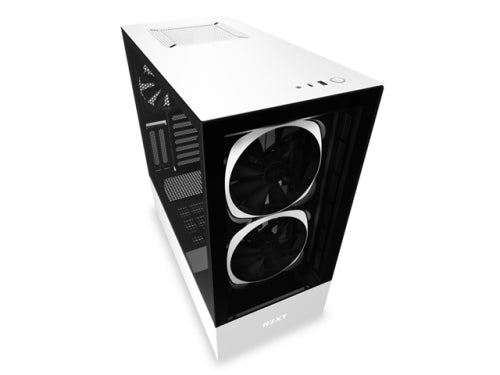

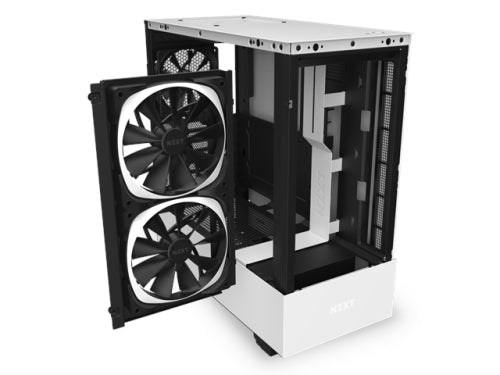

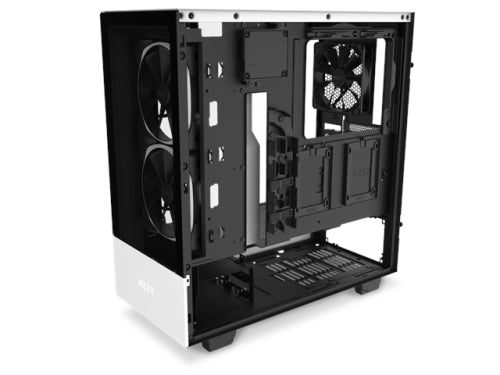

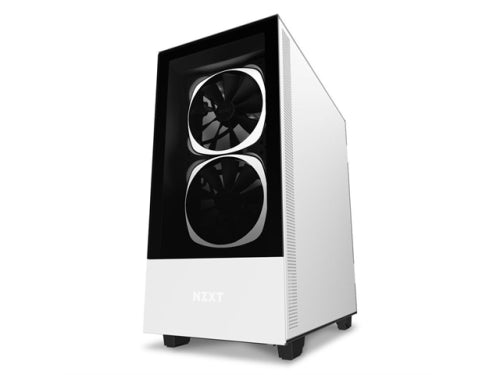

NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5
NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5
NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5
NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5
NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5
NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5
NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5
NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5

NZXT Case CA-H510E-W1 H510 Elite Mid-Tower Tempered Glass USB 3.5"/2.5" ATX Matte White Retail

$199.99
SHARE
MPN
CA-H510E-W1
Material(s)
SGCC Steel, Tempered Glass
Clearance
Cable Management: 19-23mm
GPU Clearance: Up to 368.6mm w/o front radiator installed, up to 313.6mm with front radiator installed
Vertical GPU Mount Clearance: 40.64mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir and Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)

Motherboard Support
Mini-ITX, MicroATX, ATX

Front I/O Ports
1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header

Filters
All Air Intakes

Smart Device V2
3x Fan channels with Max 10W per channel output
2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans
Built-in noise detection module
(Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters.)

RGB LED Lighting
2x Integrated Aer RGB 2 140mm Fans
1x Integrated addressable LED Strip

Vertical GPU Mount
2 Slots

Drive Bays
2.5": 2+1
3.5": 2+1

Expansion Slots
7

Radiator Support
Front: 2x 140 or 2x 120mm with Pull
(Note: Need to remove RGB fans if you plan to mount the radiator to the front)
Rear: 1x 120mm

Fan Support
Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included)
Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included)
Rear: 1x 120mm (1x AER F120 Case Version Included)

Fan Specs
Aer RGB 2 (140mm)
Speed: 500-1,500 RPM
Airflow: 30.39 - 91.19 CFM
Noise: 22 - 33 dBA
Air Pressure: 0.17 - 1.52mm-H2O
Bearing: Fluid Dynamic Bearing
Fan Connector 4-Pin PWM
