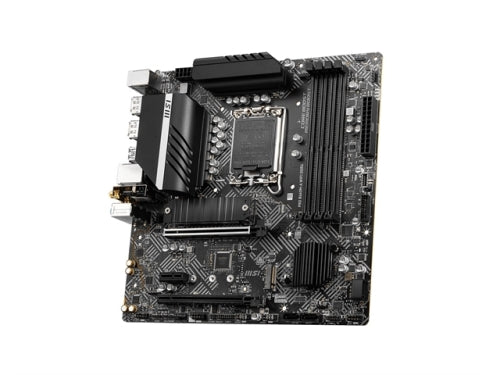

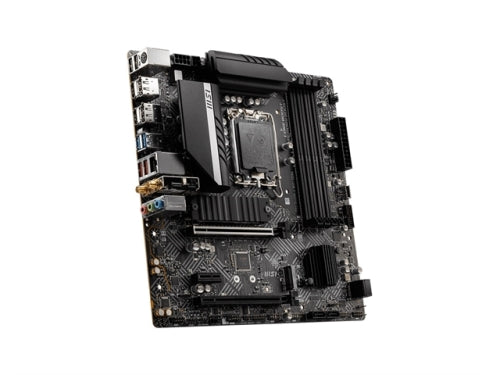

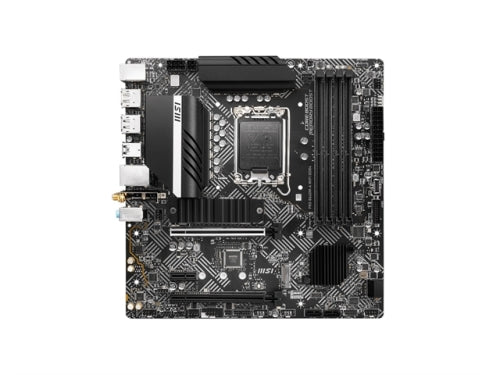

MSI Motherboard PROB660MAWID4 PRO B660M-A WIFI DDR4 B660 Socket1700 Max128GB DDR4 PCI Express mATX Retail

CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel B660 Chipset
DDR4 MEMORY
4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
SATAIII
4
PCI-E X1
1
M.2 SLOT
2
RAID
0/1/5/10
TPM (HEADER)
1
LAN
1x Realtek RTL8125BG 2.5Gbps LAN controller
USB 3.2 PORTS (FRONT)
1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
2(Gen 2, Type A), 2(Gen 1, Type A)
WIFI and BLUETOOTH
Intel Wi-Fi 6 module
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
SERIAL PORTS(FRONT)
1
AUDIO PORTS (REAR)
Realtek ALC897 Codec
DISPLAYPORT
2
HDMI
2
DIRECTX
12
FORM FACTOR
MATX
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
