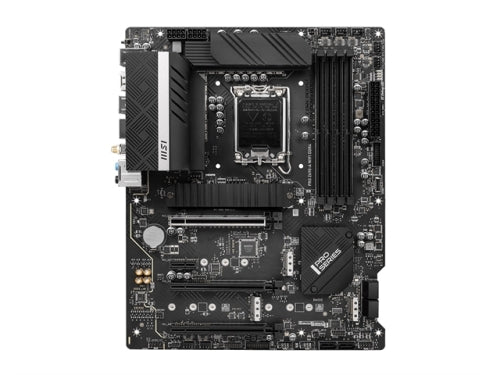

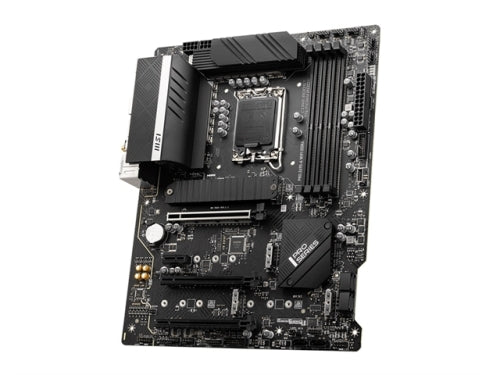

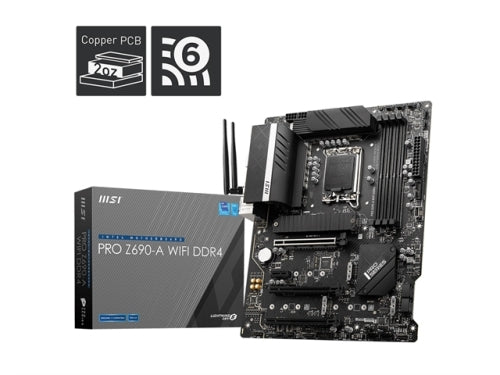

MSI Motherboard PRO Z690-A WIFI DDR4 S1700 Z690 128GB DDR4 PCIE ATX Retail

CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel Z690 Chipset
DDR4 MEMORY
5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
3
PCI-E X1
1
SATAIII
6
M.2 SLOT
4
RAID
0/1/5/10
TPM (HEADER)
1
LAN
1x Intel I225-V 2.5Gbps LAN
WIFI and BLUETOOTH
Intel Wi-Fi 6 module
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 4(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC897/ALC892 Codec
DISPLAYPORT
1
HDMI
1
DIRECTX
12
CROSSFIRE
Y
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
FORM FACTOR
ATX
