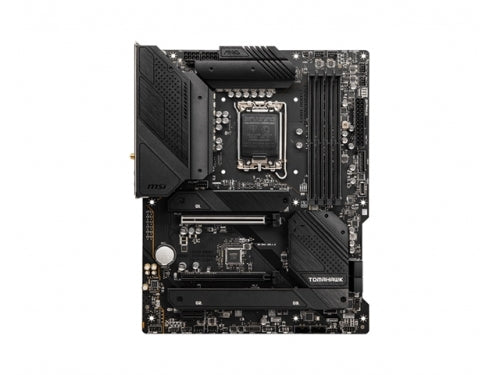

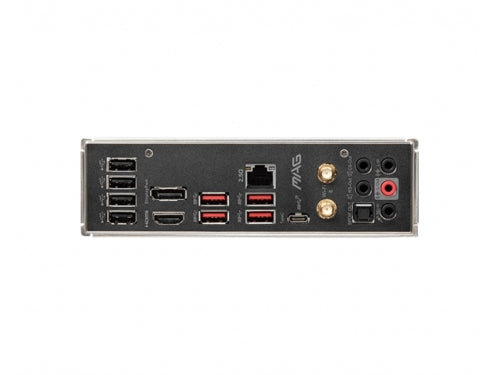

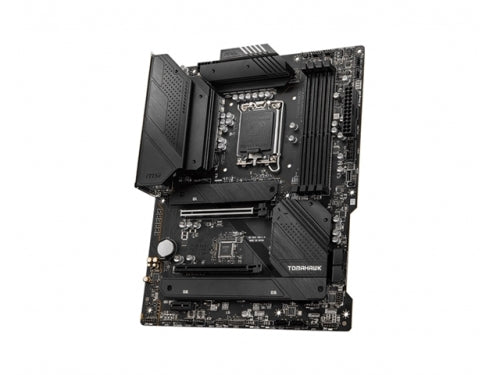

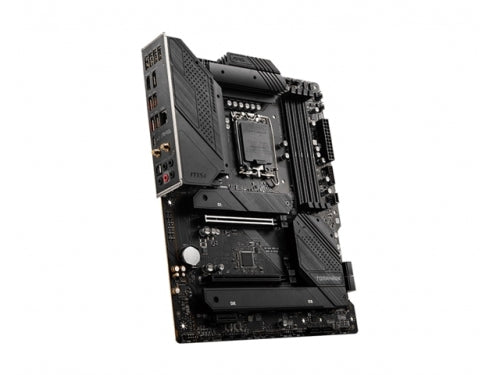

MSI Motherboard B660TOMWID4 MAG B660 TOMAHAWK WIFI DDR4 B660 Socket1700 Max.128GB DDR4 ATX Retail

CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel B660 Chipset
DDR4 MEMORY
4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
SATAIII
6
PCI-E X1
1
M.2 SLOT
3
RAID
0/1/5/10
LAN
1x Realtek 8125BG 2.5G LAN
USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 1(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 4(Gen 2, Type A)
WIFI and BLUETOOTH
Intel Wi-Fi 6 module
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC1220P Codec
DISPLAYPORT
1
HDMI
1
DIRECTX
12
FORM FACTOR
ATX
CROSSFIRE
Y
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
