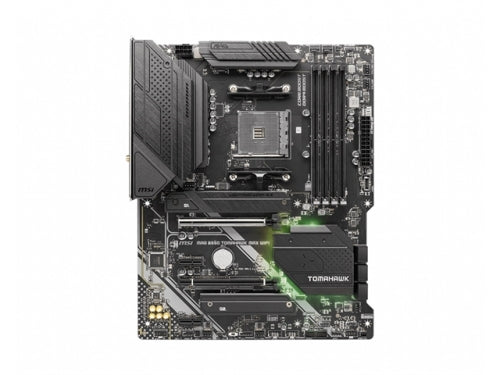

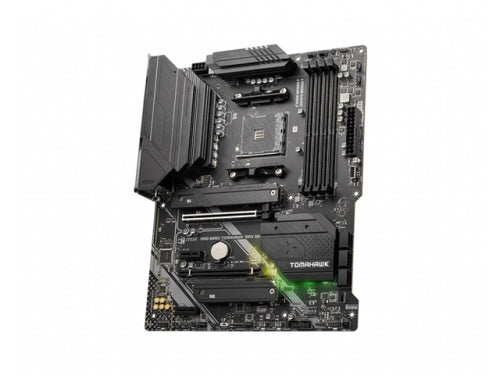

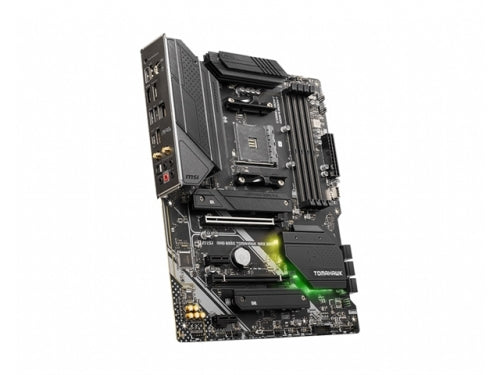

MSI Motherboard B550TMHWKMWI MAG B550 TOMAHAWK MAX WIFI AM4 Max128GB DDR4 PCI Express ATX Retail

CPU (MAX SUPPORT)
RYZEN 9
SOCKET
AM4
CHIPSET
AMD B550 Chipset
DDR4 MEMORY
5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
SATAIII
6
PCI-E X1
2
M.2 SLOT
2
RAID
0/1/10
LAN
1x Realtek RTL8125B 2.5G LAN
USB 3.2 PORTS (FRONT)
1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
AUDIO PORTS (REAR)
5+ Optical S/PDIF (Realtek ALC897 Codec)
DISPLAYPORT
1
HDMI
1
DIRECTX
12
FORM FACTOR
ATX
CROSSFIRE
Y
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
