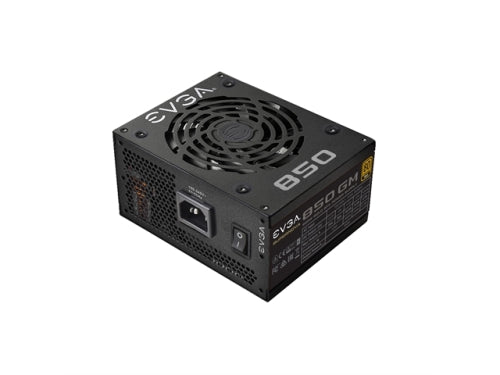

EVGA Power Supply 123-GM-0850-X1 SuperNOVA 850 GM 850W 80+ Gold Fully Modular Retail

MPN
123-GM-0850-X1
CABLE LENGTH
ATX Cable
1x 300mm (m)
EPS Cable
2x 400mm (m)
PCIe Cable
1x 400mm, 510mm (m) / 1x 510mm, 620mm (m)
SATA Cable
2x 300mm, 410mm,520mm (m)
Four-Pin Peripheral Cable
1x 300mm, 410mm, 520mm, 630mm (m)
Floppy Adapter
1x 100mm (m)
AC Power
1x 1500mm (m)
Modular Cable Type
Full

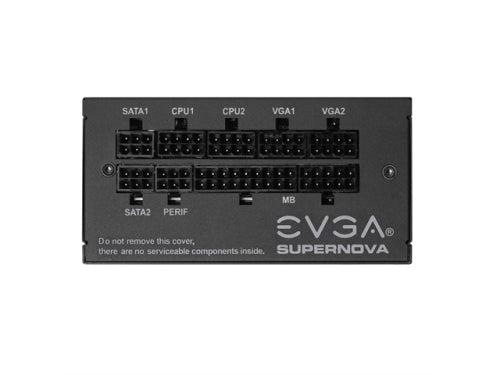

CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
4x 8pin (6+2)
SATA
6x
Four-Pin Peripheral
4x
Floppy
1x

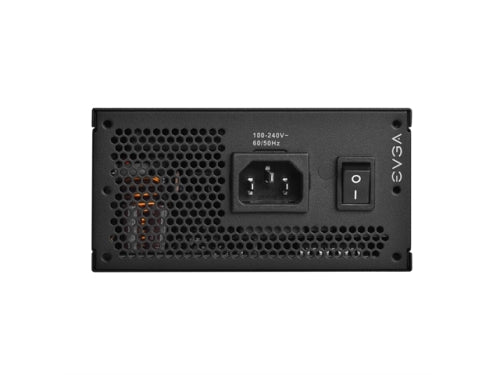

INPUT
Input Voltage
100-240V or more
AC Input
12-6A
Input Frequency Range
60/50Hz
Efficiency
90% (115VAC) or Higher Typical

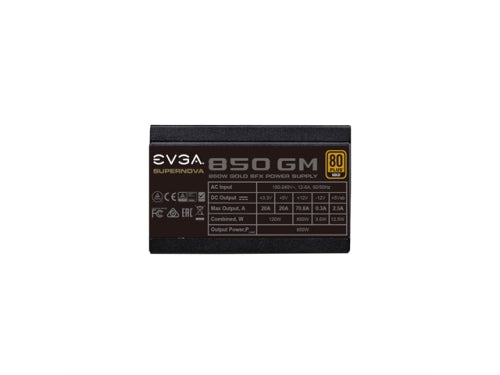

OUTPUT
Rail / Max output
+3.3V/ 20A/120W
+5V/ 20A/120W
+12V/70.8A/850W
-12V/0.3A/3.6W
+5Vsb/2.5A/12.5W
Total
850W
ADDITIONAL DETAILS
Operating Temperature
0^o to 40^o C
Japanese Capacitors
100%
ECO Mode
Auto
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
92mm Fluid Dynamic Bearing
