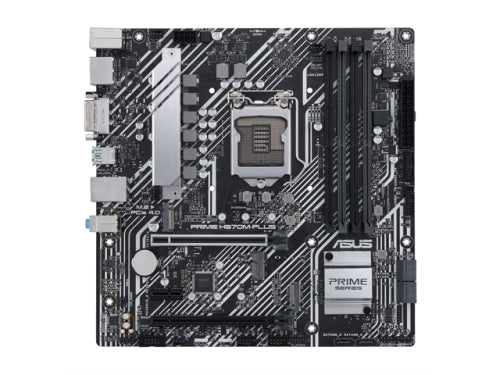

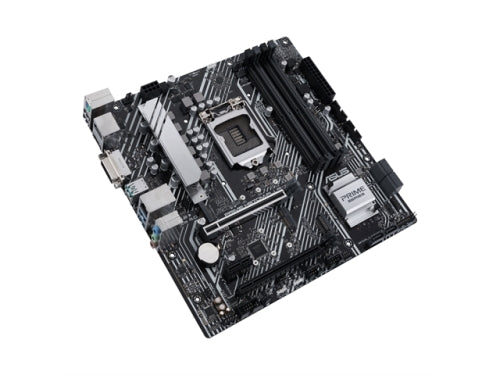

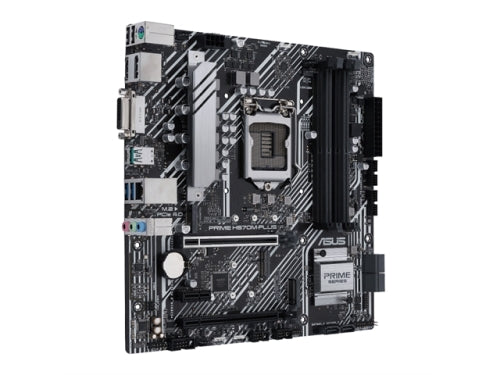

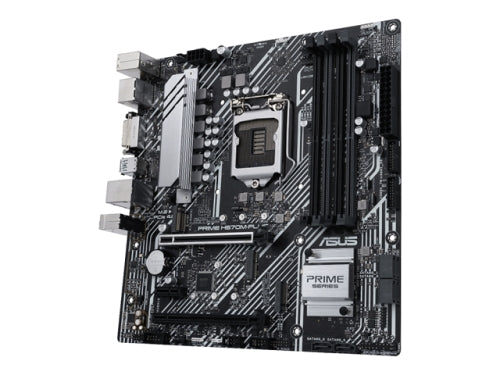

ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail
ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail
ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail
ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail
New
ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail
ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail
ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail
ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail

ASUS Motherboard PRIME H570M-PLUS/CSM H570 LGA1200 Max.128GB DDR4 HDMI/Display Port Windows microATX Retail

$154.99
SHARE
MPN
PRIME H570M-PLUS/CSM
CPU
Intel Socket LGA1200 for 11th Gen Intel CoreTM processors and 10th Gen Intel CoreTM, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H570 Chipset
Memory
4 x DIMM, Max. 128GB,DDR4
4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
10th Gen Intel CoreTM i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.4
1 x DVI-D
1 x HDMITM 1.4 / 2.0
Graphics specifications may vary between CPU types.
Intel 11th and 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 at 60Hz. Please refer to www.intel.com for any updates.
Only Intel 11th Gen processors support HDMITM 2.0 with max. resolution of 4K at 60Hz, others will only support HDMITM 1.4 with max. resolution of 4K at 30Hz .Please refer to www.intel.com for any updates.
Expansion Slots
Intel 11th and 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16 mode
- Intel10th Gen processors support PCIe 3.0 x16 mode
Intel H570 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Storage
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel H570 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
6 x SATA 6Gb/s ports
Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel OptaneTM Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
Ethernet
1 x Intel I219-V 1Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 8 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x DVI-D port
1 x HDMITM port
1 x Intel I219V 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x ThunderboltTM header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
FAN Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
Norton Anti-virus software (Free Trial version)
DAEMON Tools
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows 10 - 64 bit
Form Factor
mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
