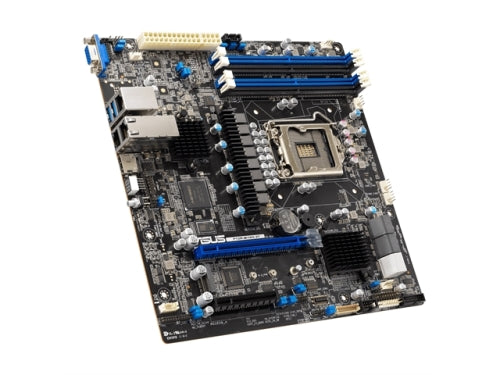

ASUS Motherboard P12R-M/10G-2T C252 LGA1200 Max128GB PCI-E U-ATX Brown box
ASUS Motherboard P12R-M/10G-2T C252 LGA1200 Max128GB PCI-E U-ATX Brown box
ASUS Motherboard P12R-M/10G-2T C252 LGA1200 Max128GB PCI-E U-ATX Brown box
ASUS Motherboard P12R-M/10G-2T C252 LGA1200 Max128GB PCI-E U-ATX Brown box
ASUS Motherboard P12R-M/10G-2T C252 LGA1200 Max128GB PCI-E U-ATX Brown box
ASUS Motherboard P12R-M/10G-2T C252 LGA1200 Max128GB PCI-E U-ATX Brown box

ASUS Motherboard P12R-M/10G-2T C252 LGA1200 Max128GB PCI-E U-ATX Brown box

$444.99
SHARE
MPN
P12R-M/10G-2T
Processor / System Bus
1 x Socket LGA1200
Intel PentiumTM processors
Intel Xeon E Processors
Core Logic
Intel C252 Chipset
Memory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB
Note: Refer to support page for more information
Expansion Slots
Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link)
Form Factor
U ATX (9.6"x9.6", 244mm x 244mm)
Storage
Storage Controller :
6 x SATA3 6Gb/s ports
IntelVROC (For Linux/Windows)
(Support Software RAID 0/1/5/10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card
Back I/O Ports
2 x USB 3.2 Gen
2 1 x VGA Port
1 x HDMI Port
2 x 10 GbE LAN + 1 x Mgmt LAN
Management Solution
ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet
Environment
Operation temperature: 10oC to 50oC
Non operation temperature: -40oC to 70oC
Non operation humidity: 20% to 90% ( Non condensing)
Note:The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Accessories
Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 6 x SATA 6G cables 4 x Plate for LGA1200 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1200
Monitoring
CPU Temperature
Fan RPM
