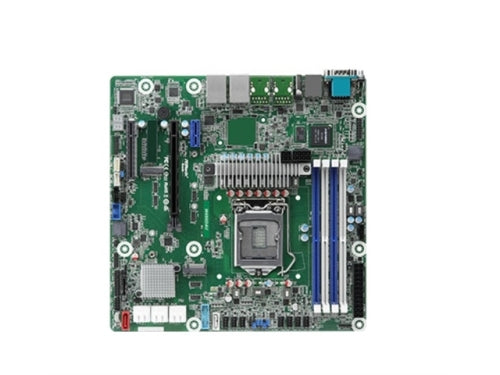

ASRock Motherboard W480D4U W480 LGA1200 Max32GB DDR4 micro-ATX Retail
ASRock Motherboard W480D4U W480 LGA1200 Max32GB DDR4 micro-ATX Retail
New
ASRock Motherboard W480D4U W480 LGA1200 Max32GB DDR4 micro-ATX Retail
ASRock Motherboard W480D4U W480 LGA1200 Max32GB DDR4 micro-ATX Retail

ASRock Motherboard W480D4U W480 LGA1200 Max32GB DDR4 micro-ATX Retail

$392.99
SHARE
MB Physical Status
Form Factor
micro-ATX


Processor System
CPU
Supports Intel Xeon W-1200, Intel 10th Gen Intel CoreTM Processors
Socket
LGA 1200
Chipset
Intel W480


System Memory
Capacity
4 x 288-pin DDR4 DIMM slots
Type
Dual Channel DDR4 memory technology
Supports DDR4 ECC/non-ECC UDIMM
ECC Memory (ECC mode) support varies by CPU.
DIMM Size Per DIMM
32GB, 16GB, 8GB, 4GB
DIMM Frequency
2933/2666/2400 MHz
2933 MHz support varies by CPU.


Expansion Slot
PCIe 3.0 x 16
Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied (Physical x16, EE x16/x8 (from CPU), shared with Slot 4)
PCIe 3.0 x 8
Slot 4: Gen3 x8 link (Physical x8, EE x0/x8 (from CPU), shared with Slot 6)
PCIe 3.0 x 1
Slot 7: Gen3 x1 link (Physical x1, EEx1 (from PCH))
M.2
2 (M2_1: 22110/2280/2260, Supports PCIe 3.0(x4) M2_2:2280/2260, Supports PCIe 3.0(x4))


Storage
SATA Controller
8 x SATA 6Gb/s (SATA0-7, SATA_0 supports SATA DOM)


Ethernet
Additional GbE Controller
2 x RJ45 GLAN by Intel i210
Management
1 x RJ45 Dedicated IPMI LAN port via RTL8211E


Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN


Graphics
Controller
ASPEED AST2500

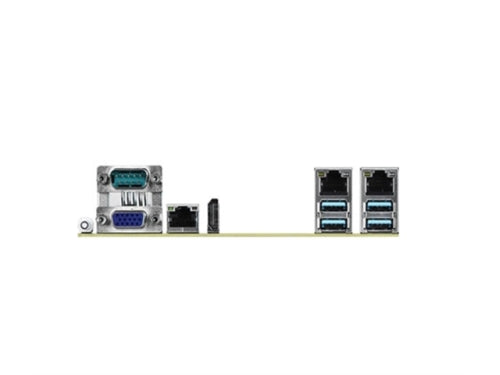

Rear Panel I/O
HDMI
1
VGA Port
1 D-Sub
USB 3.1 Gen1 Port
2 Type-A (5Gbps)
USB 3.1 Gen2 Port
2 Type-A (10Gbps)
Lan Port
2 RJ45 (1GbE)
LAN Ports with LED (ACT/LINK LED and SPEED LED)
Dedicate LAN
1
Serial Port
1
UID Button/UID LED
1


Internal Connector

SATA DOM
1
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support.
Thermal Sensor Header
1
IPMB Header
1
VGA Header
1
PMBus CONN
1
Buzzer
1
Fan Header
7 (4-pin)
USB 3.1 (Gen1) Header
1 (supports 2 USB 3.2 Gen1 ports)
USB 2.0 Header
1 (supports 2 USB 2.0 ports)
Thunderbolt AIC Connector
1 (BTO)
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header
1
BMC_SMB Header
1
SGPIO Header
1
Power Connector
24-pin (ATX), 8-pin (12V), 4pin (12V)
ME/SPS Recovery
1
Clear CMOS
1 (contact pads)


Onboard LED
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
7


System BIOS
BIOS Type
256 Mb AMI UEFI Legal BIOS


Hardware Monitor
Temperature
CPU Temperature Sensing
MB/Card side/TR1 Temperature Sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage
+12V, +5V, +3.3V, CPU Vcore, DRAM, V1.0M,+BAT, 3VSB, 5VSB


Support OS
OS
Microsoft Windows 10 (64 bit)
Linux


Environment
Temperature
Operation temperature: 10oC - 35oC / Non operation temperature: -40oC - 70oC
