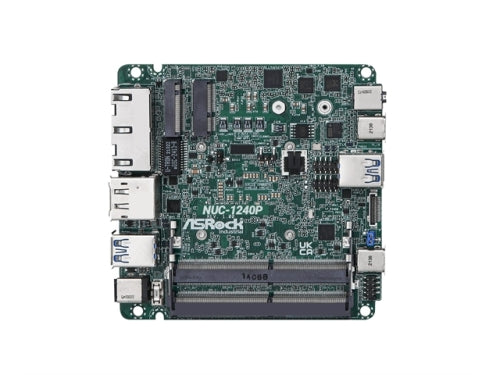

ASRock Motherboard NUC-1240P MCP Alder Lake-P Max64GB DDR4 PCIE NUC Retail

Form Factor
NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)
Processor System
CPU
Intel 12th Gen (Alder Lake-P) Core^TM Processors
NUC-1240P( i5-1240P, 4P+8E)
Chipset
MCP
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Intel Iris Xe Graphics
HDMI
HDMI 2.0b
Max resolution up to 4096x2160 at 60Hz
DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160 at 60Hz
MultiDisplay
Max 4 display (Included 2 outputs from Type-C)
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Audio
Interface
Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed
Intel I225LM with 10/100/1000/2500 Mbps
Connector
2 x RJ-45

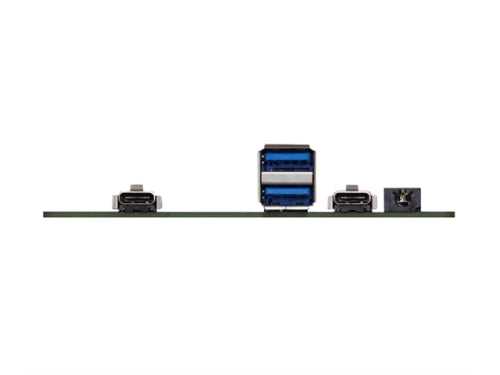

Front I/O
USB
2 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
Note: USB4^TM Compliance Test is pending for certification
Note: For Thunderbolt support, please refer to support list.
Audio
1 (headphone and microphone jack)

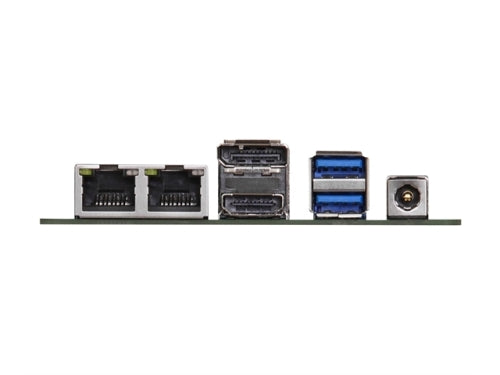

Rear I/O
HDMI
1 x HDMI 2.0b
DisplayPort
1 x DP 1.4a
Ethernet
2 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen2 (Type A)
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1 x 2.00 pitch header)
COM
1 x COM(RS-232/RS-422/RS-485)
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
Note: M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON Number
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12V to 19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0^oC to 60^oC
Storage Temp
-40^o C to 85^o C
Operating Humidity
5% to 90%
Storage Humidity
5% to 90%
