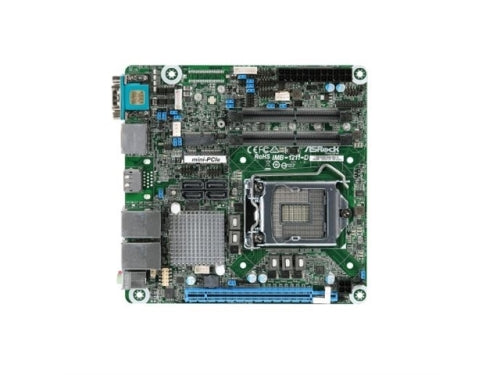

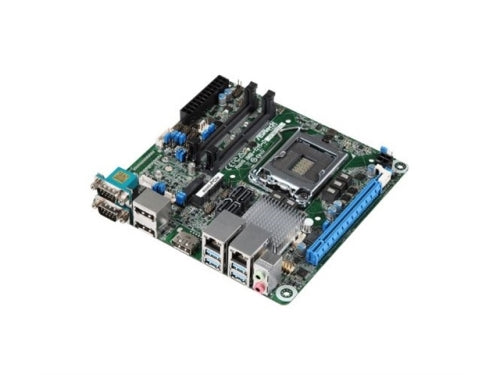

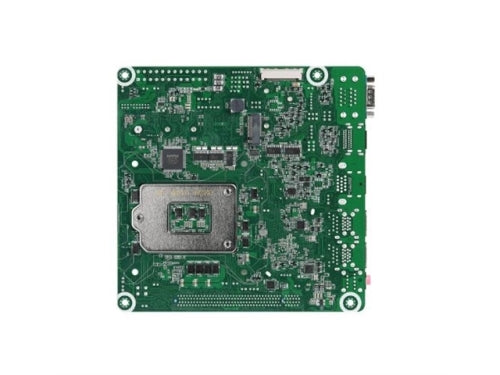

ASRock Motherboard IMB-1210-D Core i7/ i5/ i3/ Celeron LGA1151 H310 Max 32GB DDR4 Mini-ITX Retail

MPN
IMB-1210-D
Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU
Intel 9th/ 8th Gen (Coffee Lake-S) Core^TM Processors, up to 65W
Note: The Performance of CPUs over 65W will be limited due to power design.
Chipset
Intel H310
Socket
LGA1151
BIOS
AMI SPI 128 Mbit
Memory
Technology
Dual Channel DDR4 2666 MHz
Capacity
64GB^note1
Note1: Intel Core i9/i7/i5 CPUs support up to 64GB (32GB per DIMM)
Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
Coffee Lake integrated graphics
DisplayPort
DisplayPort 1.2, DP++
Max resolution up to 4096x2304 at 60Hz
eDP
eDP 1.4 Max resolution up to 4096x2304 at 60Hz
MultiDisplay
Dual Display
Expansion Slot
PCIe
1 x PCIe x16 (Gen3)
mini-PCIe
1 x Full/Half size with PCIe x1 and USB 2.0
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Audio
Interface
Realtek ALC887, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed
LAN1: Intel I210 with 10/100/1000 Mbps
LAN2: Intel I219V with 10/100/1000 Mbps
Connector
2 x RJ-45

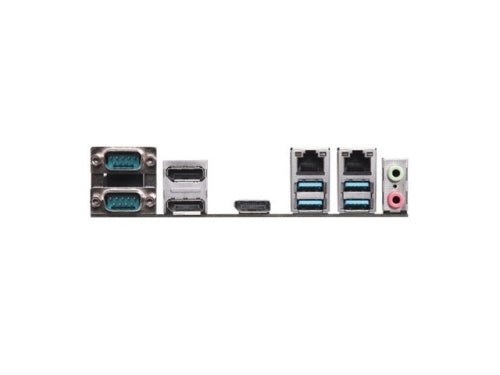

Rear I/O
DisplayPort
3 x DP 1.2
Ethernet
2 x 1 Gigabit LAN
USB
4 x USB 3.1 (Gen1)
Audio
2 (Mic-in, Line-out)
COM
COM3(RS-232/422/485)
COM4(RS-232)
Internal Connector
USB
4 x USB 2.0 (2 x 2.00 pitch header)
COM
COM1, 2(RS232)
GPIO
4 x GPI, 4 x GPO
TPM
TPM Header
LVDS
N/A
eDP
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD
SATA
4 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M
Watchdog Timer
Output
From Super I/O to drag RESETCON
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
ATX PWR (24+4-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0^oC - 60^oC
Storage Temp
-40^oC - 85^oC
Operating Humidity
5% - 90%
Storage Humidity
5% - 90%
