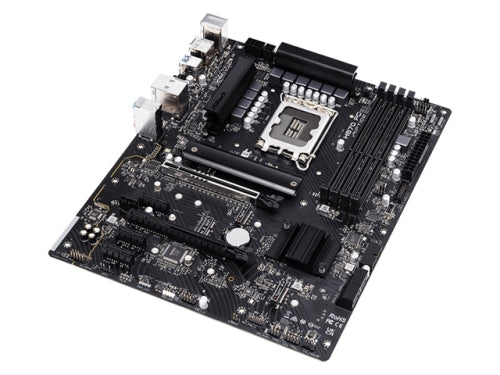

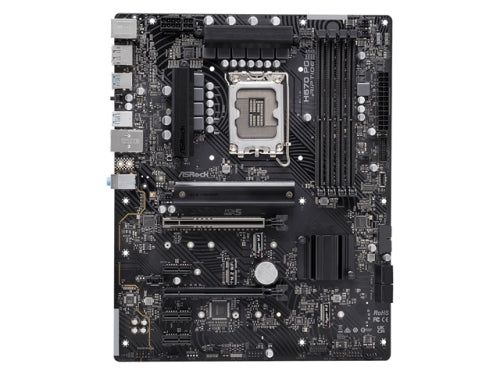

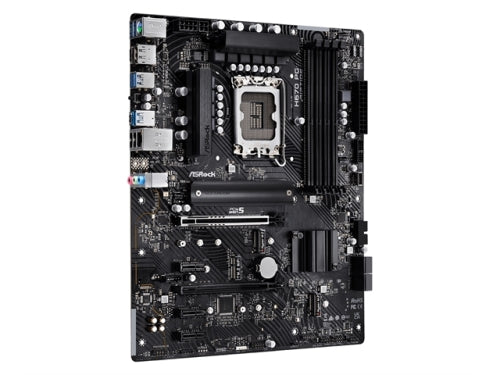

ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail
ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail
ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail
ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail
ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail
ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail
ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail
ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail

ASRock Motherboard H670 PG RIPTIDE H670 LGA1700 Max128GB DDR4 ATX Retail

$183.99
SHARE
MPN
H670 PG RIPTIDE
Unique Feature
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- 50A Dr.MOS
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update and APP Shop
CPU
- Supports 12th Gen Intel CoreTM Processors (LGA1700)
- 9 Power Phase design
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
- Intel H670
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
Note: Supports DDR4 3200 natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V
Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz / 5K (5120x3200) at 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Note: Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Nahimic Audio
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Slots
- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1) dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))
- 3 x PCIe Gen3x1 Slots
- Supports AMD CrossFireTM
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Note: Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s and PCIe Gen4x4 (64 Gb/s) modes
Note: Supports Intel OptaneTM Technology (M2_2 and M2_3 only)
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED HeaderNote1
- 3 x Addressable LED HeadersNote2
- 1 x CPU Fan Connector (4-pin) Note3
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) Note4
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) Note5
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x ThunderboltTM AIC Connector (5-pin) (Supports ASRock ThunderboltTM 4 AIC Card)
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Note1: Supports in total up to 12V/3A, 36W LED Strip
Note2: Support in total up to 5V/3A, 15W LED Strip
Note3: The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Note4: The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
Note5: The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP and CHA_FAN1-4/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 3 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Support ESD Protection)
- 2 x USB 2.0 Ports (Support ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Note: USB3_2_3 are the Lightning Gaming Ports.
Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
Note: These utilities can be downloaded from ASRock Live Update and APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 Standoff for M.2 Socket
Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Solid Capacitor design
OS
- Microsoft Windows 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Item Dimension (L inchxW inchxH inch)
14 x 11 x 3

Weight
5.79 lb
