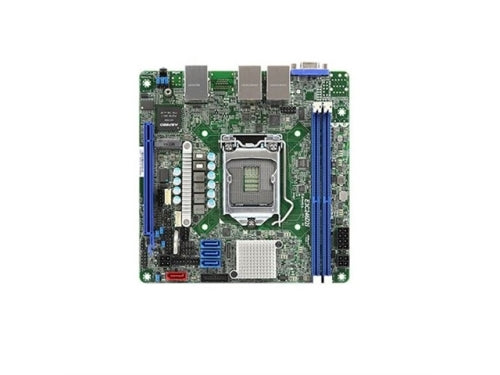

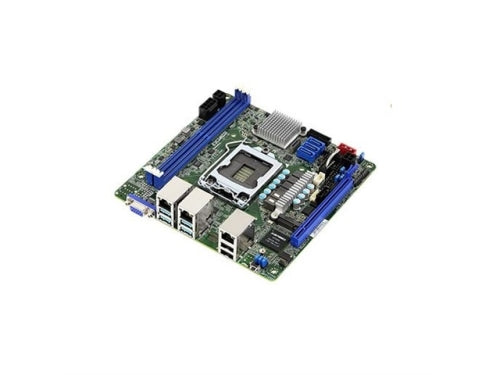

ASRock Motherboard E3C246D2I E-2100 C246 DDR4 Max.64GB SATA3 PCI Express mini-ITX Retail
ASRock Motherboard E3C246D2I E-2100 C246 DDR4 Max.64GB SATA3 PCI Express mini-ITX Retail
ASRock Motherboard E3C246D2I E-2100 C246 DDR4 Max.64GB SATA3 PCI Express mini-ITX Retail
New
ASRock Motherboard E3C246D2I E-2100 C246 DDR4 Max.64GB SATA3 PCI Express mini-ITX Retail
ASRock Motherboard E3C246D2I E-2100 C246 DDR4 Max.64GB SATA3 PCI Express mini-ITX Retail
ASRock Motherboard E3C246D2I E-2100 C246 DDR4 Max.64GB SATA3 PCI Express mini-ITX Retail

ASRock Motherboard E3C246D2I E-2100 C246 DDR4 Max.64GB SATA3 PCI Express mini-ITX Retail

$292.99
SHARE
MPN
E3C246D2I
MB Physical Status
Form Factor
- mini-ITX
Dimensions
- 6.7" x 6.7" (17.02 cm x17.02 cm)

Processor System
CPU
- Supports Intel Xeon E-2100 Processors (Max. 95W)
Chipset
- Intel C246

System Memory
Capacity
- 2 x DDR4 DIMM slots
Type
- Dual Channel memory technology
- Supports DDR4 2133/2400/2666 ECC UDIMM
The non-ECC UDIMMs support Client OS only.
DIMM Size Per DIMM
ECC and non-ECC UDIMM : 16GB, 8GB, 4GB
Future support 2DIMM max 64GB.
Voltage
- 1.2V

Expansion Slot
PCIe 3.0 x 16
- SLOT7: Gen3 x16 link

Storage
SATA Controller
- Intel C246: 1 x OCuLINK (SATA_0,1,2,3), 4 x SATA3 6Gb/s (SATA_4,5,6,7), 1 x SATA DOM included
Please contact sales to buy the OCuLink to 4x SATA cable
NVMe Device
- NVMe SSDs PCIEx4 (Share with SATA_0,1,2,3)

Ethernet
Interface
- 1000 /100 /10 Mbps
LAN Controller
- 2 x RJ45 GLAN by Intel i210+Intel i219LM
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function(TBD)
- Supports PXE
- LAN1 supports NCSI
Management
- 1

Management
BMC Controller
- ASPEED AST2500
IPMI Dedicated GLAN
- 1 x Realtek RTL8211E for dedicated management GLAN
Features
- Watch Dog
- NMI

Graphics
Controller
- ASPEED AST2500
VRAM
- DDR4 512Mb

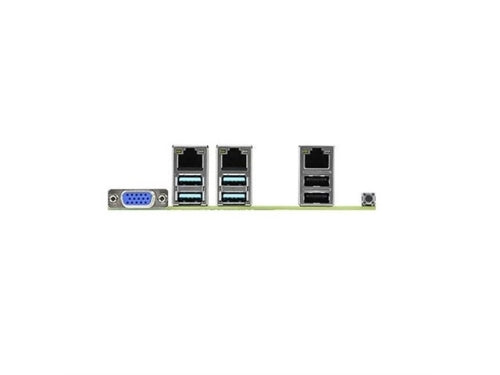

Rear Panel I/O
VGA Port
- 1 x D-Sub
USB 2.0 Port
- 2
USB 3.1 Gen1 Port
- N/A
USB 3.1 Gen2 Port
- 4 (Type A Gen2 x4)
Lan Port
- RJ45: 2x GLAN(by Intel i210+ Intel i219LM)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID Button/UID LED
- 1
Audio
- N/A

Internal Connector
COM Header
- 1
SATA DOM
- 1
M.2
- 1(2242, PCIE(x4)/SATA3 6Gb/s(SATA 1))
OCuLink
- 1
Auxiliary Panel Header
- 1 (include chassis intrusion, location button and LED, front LAN LED, event log LED)
TR1 Header
- 1
TPM Header
- 1
IPMB Header
- 1
Buzzer
- N/A
Fan Header
- 3(1CPU/1Front/1Rear)
ATX Power
- 1x (4-pin)
DC IN
- 1x (8-pin)
USB 3.1 (Gen1) Header
- 1 (support 2 USB 3.0)
USB 2.0 Header
- N/A
PWR SMB Header
- 1
Front Panel
- 1 (RST, HDLED, PLED, PERBTN)
Serial ATA3 Connector
- 3
HDD Power Connector
- 1x (4-pin)
Speaker Header
- 1(4pin)
SGPIO Header
- 2
SMBUS from BMC
- 1
Clear CMOS
- 1 (short pad)

Onboard LED
80 Debug Port LED
- N/A

System BIOS
BIOS Type
- 128Mb AMI UEFI Legal BIOS
BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash

Hardware Monitor
Temperature
- CPU Temperature Sensing
- System Temperature Sensing
- System Inlet Temperature Sensing
Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage
- +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB

Support OS
OS
Microsoft Windows
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.10 (64 bit) / 7.5 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit)
- Ubuntu 16.04 (64 bit)/ 18.04 (64 bit)
Virtual
- VMWare ESXi 6.5 u1
- Win hyper-V Server 2016

Environment
Temperature
Operation temperature: 10oC to 35oC / Non operation temperature: -40oC to 70oC
