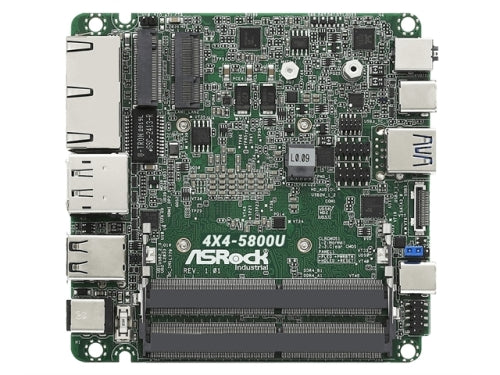

ASRock Motherboard 4X4-5800U AMD Ryzen7 5800U SoC Max64GB DDR4 4X4 Retail

Form Factor
4X4 (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)
Processor System
CPU
AMD Ryzen^TM 7 5800U (Max Speed up to 4.4GHz)
Chipset
SoC
BIOS
AMI SPI 128 Mbit
Memory
Technology
Dual Channel DDR4 3200 MHz
Capacity
64GB (32 GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD Radeon^TM Graphics
HDMI
HDMI 2.0a
Max resolution up to 4096x2160 at 60Hz
DisplayPort
DisplayPort 1.2a, DP++
Max resolution up to 4096x2160 at 60Hz
MultiDisplay
Max 4 display (Included 2 outputs from Type C)
Expansion Slot
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
Audio
Interface
Realtek ALC233, High Denition Audio.
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111FPV (DASH) with 10/100/1000 Mbps
Connector
2 x RJ-45

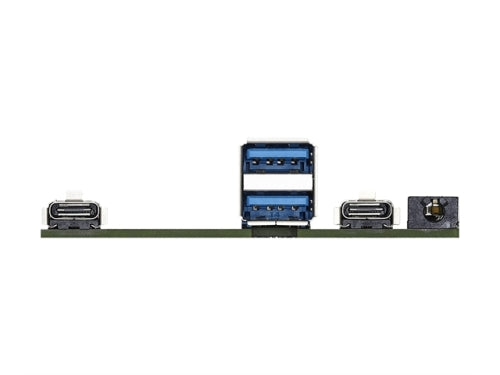

Front I/O
USB
2 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type C, Supports DP 1.2a display output)
Audio
1 (headphone and microphone jack)

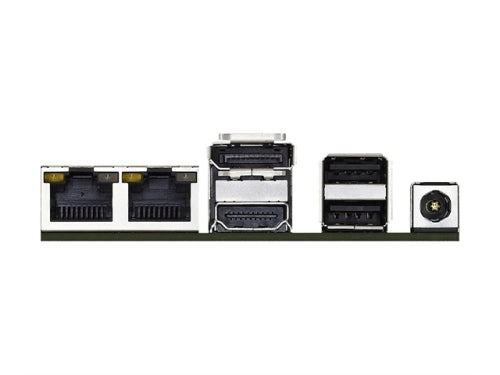

Rear I/O
HDMI
1 x HDMI 2.0a
DisplayPort
1 x DP 1.2a
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
2 x USB 2.0
DC Jack
1
Internal Connector
USB
2 x USB 2.0 (1 x 2.00mm pitch header)
COM
1 x COM (RS-232/422/485)
TPM
TPM 2.0 onboard IC
Storage
M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
- M.2 Key M 2280(Supported by bracket)
SATA
1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON number
Interval
256 Segments 0,1,2....
Power Requirements
Input PWR
12V to 19V DC-In Jack
Power On
AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Environment
Operating Temp
0^oC to 60^oC
Storage Temp
-40^o C to 85^o C
Operating Humidity
5% to 90%
Storage Humidity
5% to 90%
Others
Longivity Support
No
